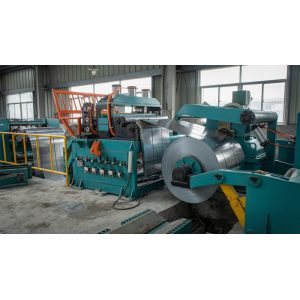

HL-ZJ1250-70A Coil Slitting Line

HL-ZJ1250-70A Coil Slitting Line

HL-ZJ1250-70A Coil Slitting Line
CategoriesSlitting line
AlbumView larger image
BrandHengli, SUMIKURA
ModelHL-ZJ1250-70A
CertificationCE
Update Time2018-11-16
Detail Information

Name & Model

HL-ZJ1250-70A slitting line(coil slitting line)

Use

For accurately slitting silicon-steel, strip steel and aluminum strip.

Characteristics

German Siemens PLC control, Japanese YUKEN brand hydraulic components, Carbide knives.

Technical parameters

1) Slitting thickness0.2-0.5mm

2) Max slitting width1250mm

3) Max uncoiling weight10T

4) Uncoiling O.D.1400mm

5) Uncoiling I.D.385-450mm / 480-520mm

6) Slitter mandrel diameter120mm

7) Slitting quantity15 strips

8) Slitting width≥71mm

9) Recoiling weight≤10T

10) Recoiling I.D.508mm

11) Slitting parallel tolerance0.05mm/m

12) Burr≤0.02mm

13) Slitting width tolerance0.05mm

14) Speed regulation methodDC, frequency control

15) Speed10-70m/min

16) Total consumption80Kw

17) Land occupation16×7m

18) Other performanceAll hydraulic driven, Proper circle recoiling, Pneumatic-expansion type strip tightener, With high-precision knife grinder, Side collector.

19) Unique designTouch screen operation, Siemens PLC control, Whole ling automatic running, On-line adjust slitting width, Adjust knife without removing shaft, On-line grinding.
