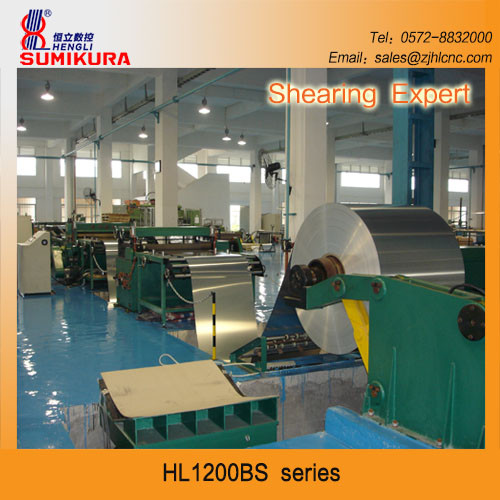

HL1200BS3 scroll cutting line

HL1200BS3 scroll cutting line

HL1200BS3 scroll cutting line
HL1200BS3 scroll cutting lineHL1200BS3 scroll cutting line
CategoriesSlitting line
BrandHengli, SUMIKURA
ModelHL1200BS3
Update TimeDec 8,2024
Detail Information

Name & Model

HL1200BS3 digital-controlled scroll cutting device

Use

For uncoiling, straightening, high-precise scroll cutting and stacking tinplate or aluminum. It is an important device for can-making or metal-printing companies to reduce tinplate loss and producing cost.

Electric control

The electric control components use whole set of Mitsubishi control system.

Material

Tinplate, Blackplate, TFS and Aluminum in tempers normally associated with standard can making material

Die set

Straight die / Scroll die

Shear type

Feed-to-stop

Technical parameters

1) Sheet width range500-1200mm

2) Sheet thickness range0.125-0.525mm

3) Sheet length range500-1200mm

4) Max coil weight12T

5) Nominal coil I.D.420mm

6) Mandrel expansion range385-445mm

7) Coil O.D.915-1700mm

8) Max line speed60m/min

9) Max cutting strokes70 SPM

10) Max bundle weight2100kg

11) Max bundle height460mm(Including stander)

12) Length tolerance range≤±0.15mm

13) Diagonal tolerance range≤±0.18/1000mm

14) Power consumptionabout 37kw

15) Air consumptionabout 1m3/min
