Detail Information
HL1200BS2 Sheeting Line
Tinplate & Aluminum Coil Sheeting Machine for Can-Making
HL1200BS2
56 SPM
500-1200mm Width
Since 2004
The HL1200BS2 sheeting line is a high-precision coil cutting solution designed for tinplate and aluminum coils. It performs continuous uncoiling, straightening, precision sheeting and automatic stacking, delivering clean, dimensionally accurate metal sheets for the can-making and metal-printing industries.
With a sheet width range of 500-1200mm, material thickness of 0.125-0.525mm and a line speed of 56 SPM, the HL1200BS2 combines high throughput with consistent cutting accuracy, helping manufacturers reduce material loss and production costs.
Key Advantages
High-Precision Sheeting
Sheet length tolerance of ±0.12mm ensures consistent, accurate metal sheets suitable for food can and metal printing applications.
56 SPM Production Speed
Optimized cutting cycle delivers high throughput for tinplate and aluminum coil processing, reducing per-sheet production cost.
Automated Uncoiling & Stacking
Fully integrated uncoiler, straightener and stacker system for continuous, hands-free production from coil to finished sheets.
Factory Direct Since 2004
Listed company (stock code 430676) with direct factory pricing, 24-hour quotation and comprehensive after-sales support.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Tinplate / Aluminum |
| Material Thickness | 0.125 - 0.525 mm |
| Sheet Width | 500 - 1,200 mm |
| Sheet Length | 500 - 1,200 mm |
| Sheet Length Tolerance | ≤±0.12 mm |
| Line Speed | 56 SPM |
| Max. Coil Weight | 12 MT |
| Coil Inner Diameter | 400 - 460 mm |
| Coil Outer Diameter | 915 - 1,800 mm |
| Arbor Expansion Range | 390 - 440 mm |
Applications
The HL1200BS2 sheeting line is widely used in tinplate and aluminum sheet processing for the can-making industry, metal printing, crown cap production and general metal packaging. Its precise cutting and stacking capability makes it ideal for manufacturers who require high-volume, consistent metal sheets with minimal scrap.

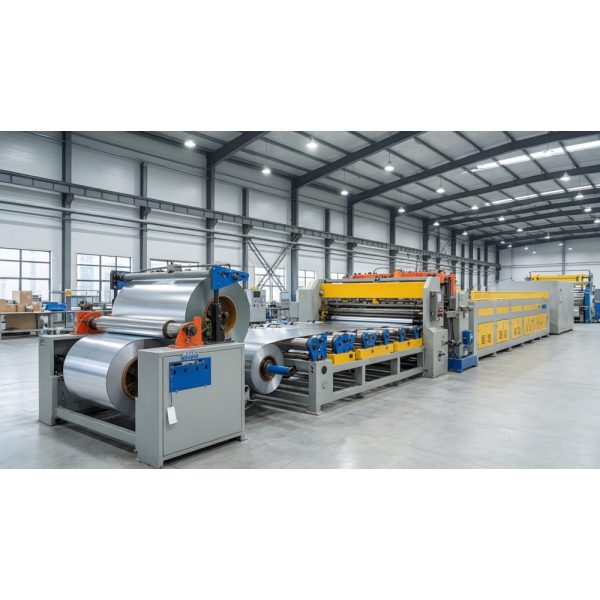

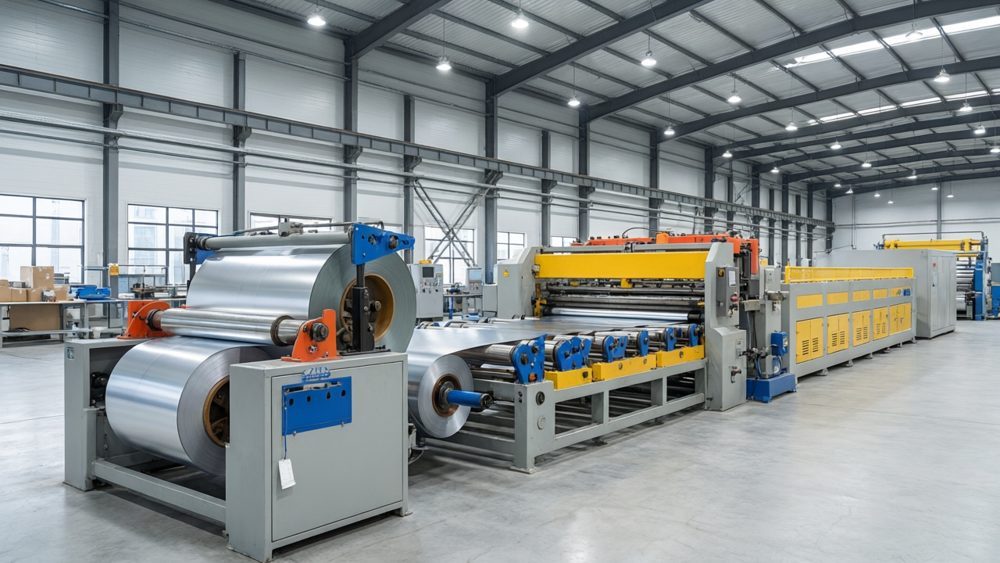

HL1200BS2 sheeting line

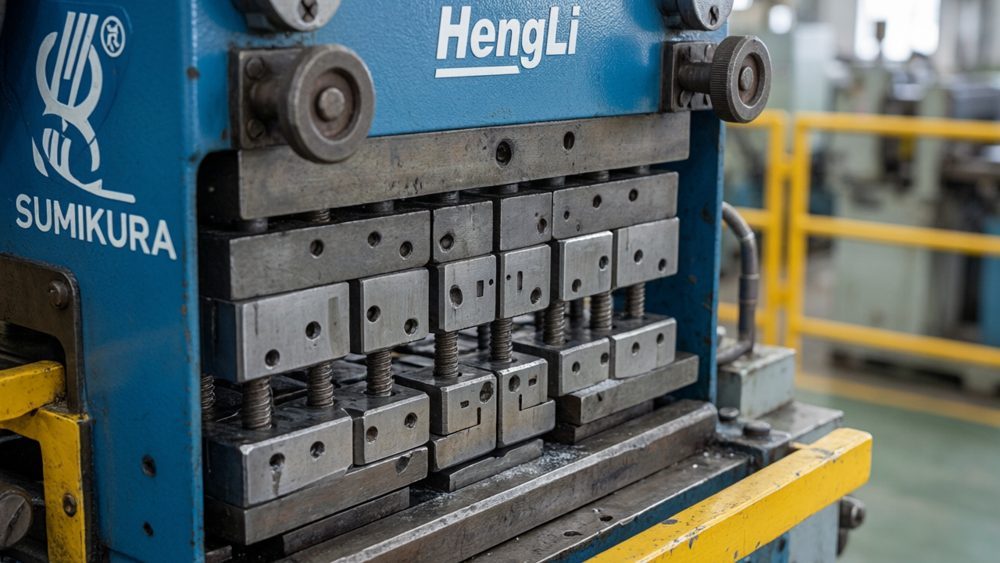

Precision cutting dies

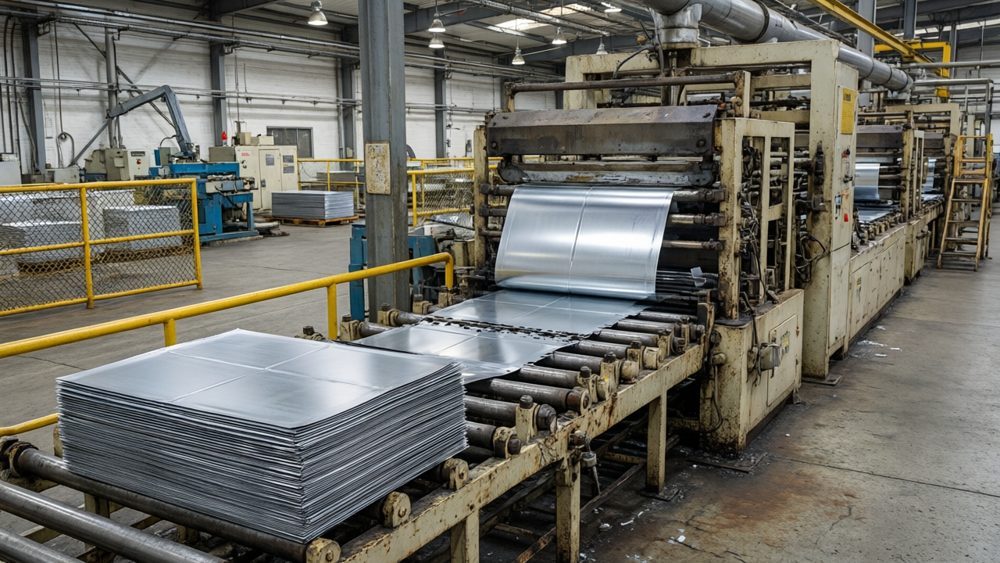

Can-making application
