Silicon Steel Cut to Length Line
Detail Information
Silicon Steel Cut to Length Line
Model: HL-HJ600(D)
HL-HJ600(D)640mm3500mm0.35mm
This equipment is specialized in cutting silicon steel for make the transformer and core. It is the necessary equipment for the electric power and transformer industry.
Technical Specifications
| Model | HL-HJ600 |
| Max capacity of each uncoiler reel | 1.5 T |
| Coil I.D. | 490±30mm |
| Shearing width | 60-640mm |
| Shearing length | 400-3500mm |
| Shearing thickness | 0.23-0.35mm |
| Shearing tolerance | ±0.2mm |
| Shearing angular tolerance | ±0.025° |
| Line speed | 150m/min |
| Life of straight cutter | 1,000,000 cuts before grinding |
| Burr in cutter life | ≤0.02mm |
| Power consumption | 38KW |
| Air consumption | 3m3/min |
| Weight | about 17T |
| Coil requirement | |
| Weight | ±0.1mm |
| Weight | ≤0.03mm |
| Weight | ≤0.02mm/2m |
Product Gallery
Silicon Steel Cut to Length Line — View 1

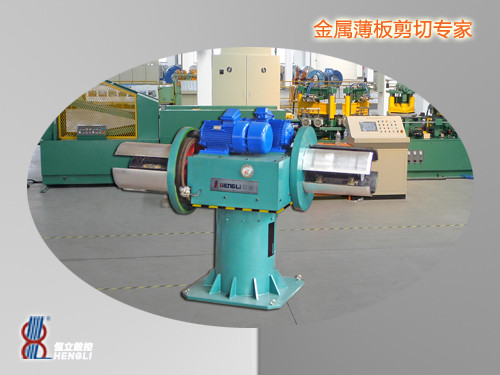

Silicon Steel Cut to Length Line — View 2

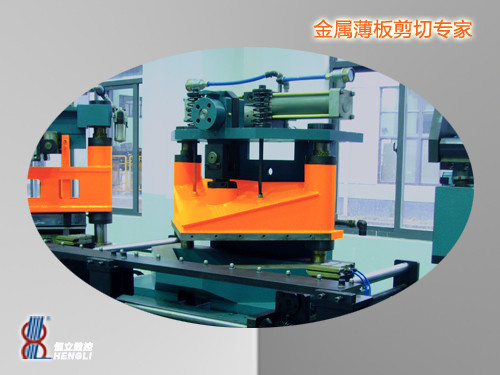

Silicon Steel Cut to Length Line — View 3

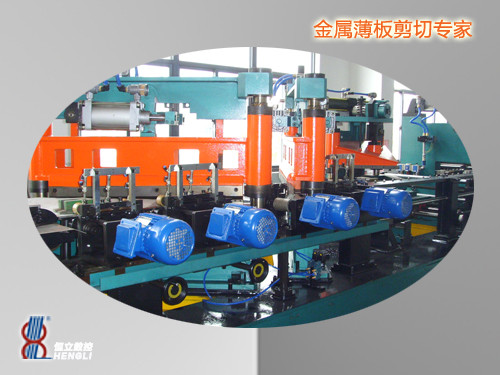

Silicon Steel Cut to Length Line — View 4
Silicon Steel Cut to Length Line — View 5
Silicon Steel Cut to Length Line — View 6
Silicon Steel Cut to Length Line — View 7
